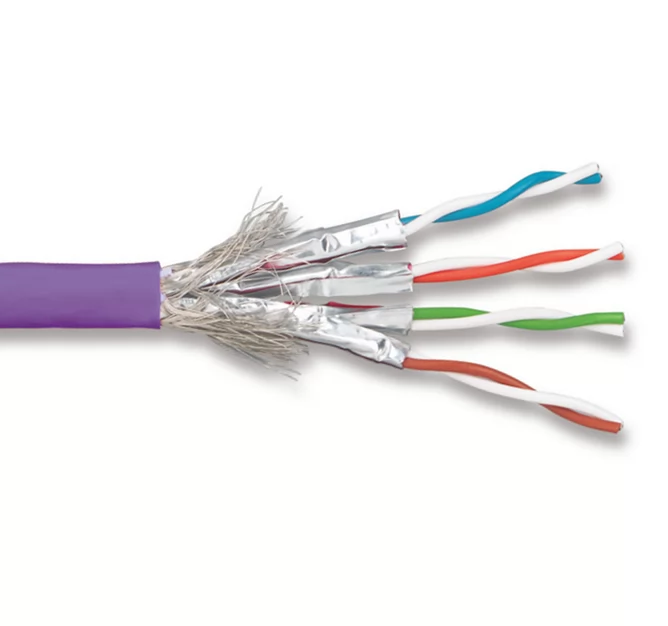

CAT7A SFTP Ethernet Cable (Shielded LAN Cable) — 1000MHz, LSZH Option, 10Gbps
Product Description:
Built for demanding environments, this CAT7A, SFTP CAT7A Cable delivers reliable 10Gbps performance with superior EMI/RFI protection. The purple jacket makes identification easy in complex racks. Perfect as a Data Center Cable and Industrial Network Cable, the ITI-CTSF7A-016 combines Solid Copper conductors, shielded pair foil plus braid, and durable PVC/PE/LSZH outer materials for long-term stability.
① Overview:ITI-LINK’s ITI-CTSF7A-016 is a shielded CAT7A Ethernet solution tailored for professional network environments. This Shielded LAN Cable offers the physical robustness and electrical performance required for mission-critical connections.
② Performance:Supporting frequencies up to 1000 MHz and data throughput up to 10Gbps, the cable is optimized for high-density racks and busy network backbones. SFTP shielding ensures stable signal quality in proximity to heavy machinery or radio sources.
③ Construction & Materials:The cable uses solid copper conductors (23 AWG) with pair foil and overall braided shield (SFTP). The outer layer is made from PVC/PE with LSZH characteristics noted for fire-sensitive applications. The combination yields excellent mechanical protection, flexibility and safety compliance.
④ Value & Benefits:For network engineers and IT managers, this CAT7A SFTP Cable lowers packet loss risk, improves uptime and offers easy troubleshooting via its purple jacket. It is suitable as a Data Center Cable, for server racks, network closets, and 5G edge installations.
⑤ Brand Trust:ITI-LINK enforces strict manufacturing standards and testing for each cable batch. The ITI-CTSF7A-016 is backed by quality assurance practices designed for enterprise deployments.
Technical Parameters:
| Product Description: CAT7A SFTP Ethernet Cable (Shielded LAN Cable) — 1000MHz, LSZH Option, 10Gbps |
| Rev.: A | ECN Description: |
| Construction Item Description | Electrical Property |
|
Conductor |
Material | Bare Solid Copper(elongation: 19-24%) | Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m |
| OD | 23AWG | Resistance unbalance within a pair | ≤ 2% |
|
Insulation | Material | PE Skin-Foam-Skin | Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V |
>1500 MΩ / 100m |
| OD | 1.45 ±0.01 mm | Mutual capacitance | 5600 pF / 100m MAX |
| Average THK | 0.42 mm | Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m |
|
Color | 1p: white + 2 blue stripes & blue | Characteristic impedance at 100MHz | 100 ± 15 Ω |
| 2p: white + 2 orange stripes & orange | Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min |
No breakdown |
| 3p: white + 2 green stripes & green | Mechanical Property |
| 4p: white + 2 brown stripes & brown |
insulation | elongation before aging | ≥ 300% |
|
Pair Twist |
Lay & Direction | 1p: S=19.0 mm (28%) | tensile strength before aging | ≥12 MPa |
| 2p: S=23.5 mm (31%) | elongation after aging | ≥ 150 % |
| 3p: S=21.5 mm (33%) | tensile strength after aging | ≥10.5 MPa |
| 4p: S=25.0 mm (36%) |
jacket | elongation before aging | ≥ 150 % |
| OD | / | tensile strength before aging | ≥ 13.5 MPa |
|
Inner Assemble | Lay | S=90 ± 5 mm | elongation after aging | ≥ 125 % |
| Direction | according to the drawing | tensile strength after aging | ≥ 12.5 MPa |
| OD | / | Packing |
|
Filler | Ripcord | / | Drum | NA |
| Drain Wire | / |
|
|
|
Pair Shield | Shield | Pair Shield |
|
| Construction | / |
| Material | Polyester/Aluminium (PET/ALU) |
| Coverage | ≥ 115% |
|
Braid | Material | ɸ 0.12mm Aluminum-magnesium braidedr |
| Coverage | ≥ 40% |
|
Jacket | Material | PVC, 50P, -20~75℃ |
| Hardness | 81± 3 |
| OD | 8.5 ± 0.2 |
| Average THK | 0.60 ~ 0.70 |
|
Color | Purple |
| Marking Color | black |
| Marking | according to the customer's requirements |
Applications:
• Data Centers & Server Rooms — Use as primary interconnects and switch-to-server links where CAT7A SFTP Cable shielding preserves signal integrity.
• Industrial Network Deployments — Ideal as an Industrial Network Cable in manufacturing floors and automation systems, resisting EMI/RFI from motors and heavy equipment.
• 5G & Telecom Infrastructure — Suitable for backhaul connections and edge equipment in 5G base station deployments.
• Corporate & Enterprise LANs — High-speed backbone and uplinks supporting virtualization, cloud access, and large file transfers.
• Security & Surveillance — Reliable cable runs for IP cameras and NVRs where interference may otherwise affect video quality.
